Air Conditioning Services in Tarragindi: Ducted & Split Systems

Precision Electrical & Air has successfully completed the installation of dual air conditioning systems at a residential property in Tarragindi. This project involved the provision and installation of a Daikin ducted system on the upper level, along with a Daikin high-wall split system situated in the downstairs living room.

Thorough Installation of the Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

Precision Electrical & Air conducted a meticulous installation of the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was strategically placed within the ceiling space above the void, while the condenser was securely attached to the front balcony wall using rubber feet for enhanced stability. All connections between the indoor and outdoor units were carefully concealed within ductwork as they exited from the ceiling space.

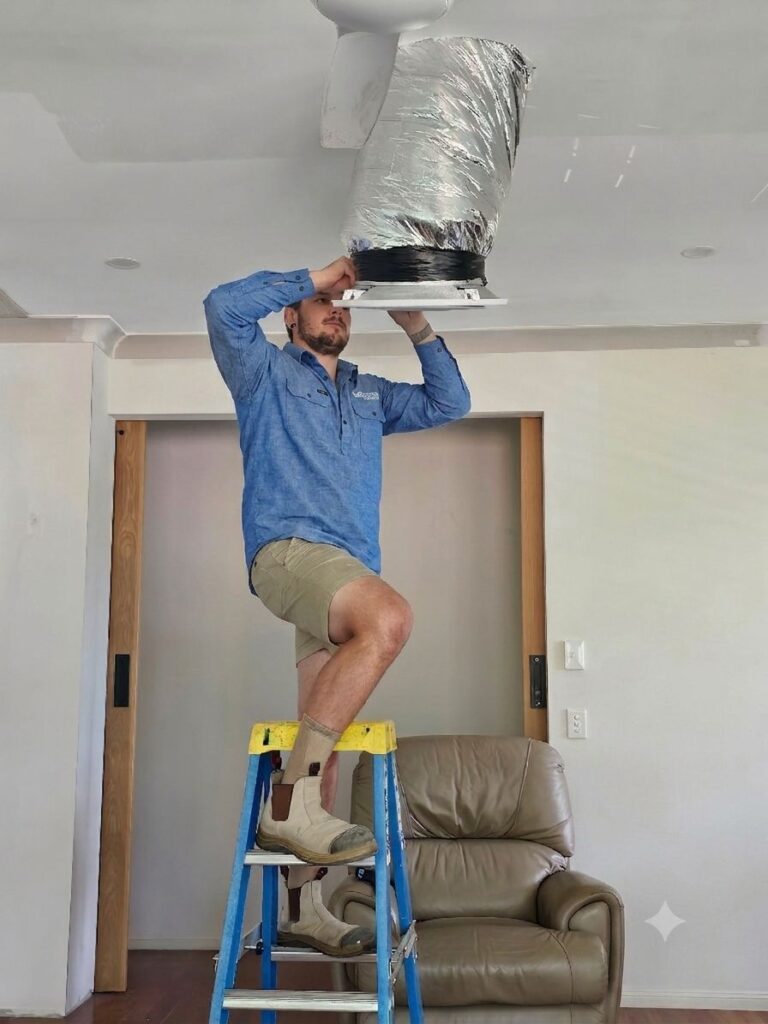

To ensure effective water drainage, two drainage systems were installed from the indoor unit and safety tray leading to the external gutter. The installation included precise placement of ducting, branch takeoffs, zone motors, and air plenums throughout the ceiling space, guaranteeing seamless integration with the indoor unit. A return air grille was also fitted in the upstairs hallway to optimise the system’s airflow.

A dedicated electrical sub-circuit was established, running from the switchboard to the outdoor unit, which included an NHP isolation switch conveniently located next to the condenser. In the upstairs hallway, a MyZone Multipoint touchpad zone controller was installed, allowing for straightforward temperature control linked directly to the zone motors.

Expert Installation of the Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

In the downstairs living room, the Daikin FTXV80W 8.0kW high-wall reverse cycle split system was installed with exceptional attention to detail. New ducting, interconnect cables, and copper pair coils were integrated to connect the indoor and outdoor units, with the condenser also mounted on rubber feet to ensure stability during operation.

A dedicated electrical circuit was created from the switchboard to the outdoor condenser, incorporating an NHP isolation switch for enhanced safety. An Aspen Silent+ Mini condensation pump was installed beneath the indoor unit and connected to the nearest stormwater downpipe, facilitating efficient drainage. Upon completion, the system underwent rigorous commissioning to ensure optimal performance.

Achieve Unmatched Comfort with Customised Air Conditioning Solutions

With these installations, the property now enjoys zoned ducted heating and cooling on the upper level, complemented by a dedicated high-wall unit in the downstairs living area. Both Daikin systems were supplied and installed in strict accordance with manufacturer specifications, ensuring the correct electrical circuits and drainage systems were properly installed.

For expert ducted or split system air conditioning installation services in Tarragindi and the surrounding suburbs of Brisbane Southside, contact Precision Electrical & Air at 0423 163 359.
