Ducted and Split System Air Conditioning in Tarragindi

Precision Electrical & Air has successfully completed the installation of dual air conditioning systems at a residential property in Tarragindi. This project involved the provision and installation of a Daikin ducted system on the upper level, along with a Daikin high-wall split system situated in the downstairs living room.

Thorough Installation of the Daikin FDYAN160AV1 16.0kW Ducted Air Conditioning System

Precision Electrical & Air executed a meticulous installation of the Daikin FDYAN160AV1 16.0kW ducted air conditioning system. The indoor unit was strategically positioned within the ceiling space above the void, while the condenser was securely mounted on the front balcony wall, utilising rubber feet for enhanced stability. All connections between the indoor and outdoor units were carefully concealed within ductwork as they exited the ceiling space.

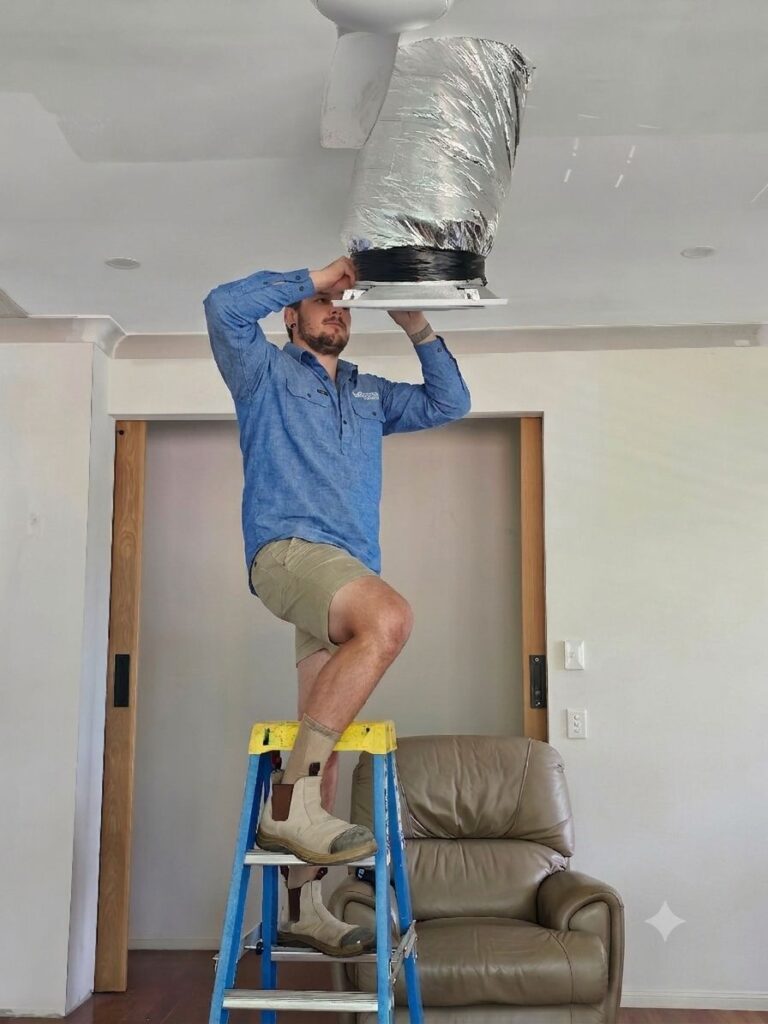

To facilitate effective water drainage, two drainage systems were implemented from the indoor unit and safety tray, leading directly to the external gutter. The installation process included the precise arrangement of ducting, branch take-offs, zone motors, and air plenums throughout the ceiling space, ensuring seamless integration with the indoor unit. A return air grille was installed in the upstairs hallway to optimise the system’s airflow.

A dedicated electrical sub-circuit was established, extending from the switchboard to the outdoor unit. This circuit featured an NHP isolation switch conveniently located next to the condenser. In the upstairs hallway, a MyZone Multipoint touchpad zone controller was installed, enabling intuitive temperature control linked directly to the zone motors.

Expert Installation of the Daikin FTXV80W 8.0kW High-Wall Split System Air Conditioning

In the downstairs living room, the Daikin FTXV80W 8.0kW high-wall reverse cycle split system was installed with precision. New ducting, interconnect cables, and copper pair coils were incorporated to connect the indoor and outdoor units, with the condenser also mounted on rubber feet to ensure stability during operation.

A dedicated electrical circuit was created from the switchboard to the outdoor condenser, which included an NHP isolation switch for safety. An Aspen Silent+ Mini condensation pump was installed beneath the indoor unit and connected to the nearest stormwater downpipe, facilitating efficient drainage. Upon completion, the system underwent thorough commissioning to ensure optimal performance.

Elevate Your Comfort with Expertly Designed Zoned Air Conditioning Solutions

With these installations, the property now enjoys zoned ducted heating and cooling on the upper level, complemented by a dedicated high-wall unit in the downstairs living area. Both Daikin systems were supplied and installed in strict accordance with manufacturer specifications, ensuring that the appropriate electrical circuits and drainage systems were in place.
