Shed Wiring Tips for Electricians: Essential Installation Advice

If you own a shed on your acreage property and are tired of depending on extension leads from your home, it is essential to consider the option of having it professionally wired. Regardless of whether your shed functions as a simple storage shed requiring only lighting and a power point, or transforms into a fully furnished workshop outfitted with welders and compressors, there is a specific procedure that must be adhered to. In NSW, the only legal and safe way to accomplish this is by hiring a licensed electrician.

This comprehensive guide delves into the critical steps involved in providing power to your shed, detailing the necessary installations your electrician will need to complete, and offering an estimate of the costs likely to be incurred in the Mid North Coast region.

Kickstart Your Shed Wiring Project by Establishing a Reliable Cable Run

The most crucial element of any shed wiring project is setting up a dependable power source that links your main switchboard to your shed. Depending on the expanse of your property, this distance can range from 30 to over 100 metres. As the length of the cable run increases, so does the necessary cable size to effectively reduce voltage drop, ensuring your shed receives adequate power efficiently and without interruptions.

You have two primary options for your cable run:

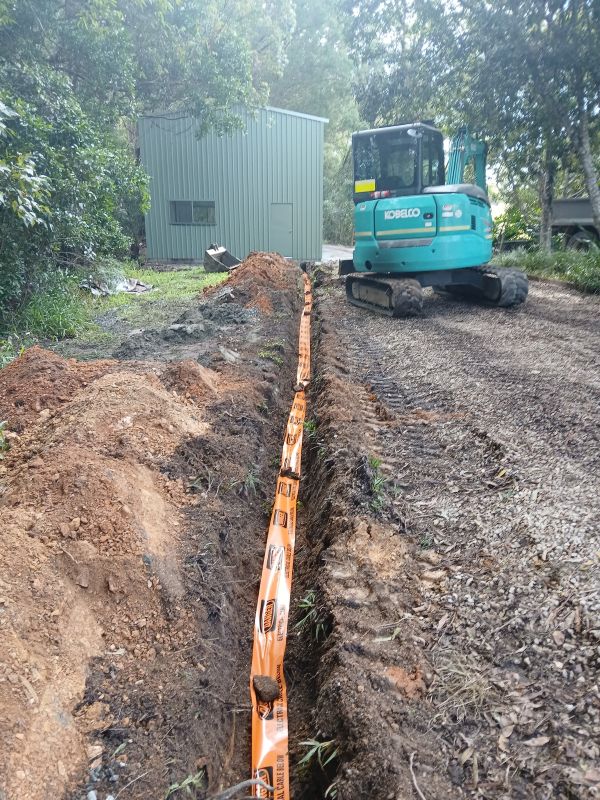

• Underground cable run — This method is the most preferred and visually appealing option. A licensed electrician will install high-quality cables through orange conduits, buried at least 500mm deep (or deeper if vehicles are expected to traverse the area). This approach protects the cable from harsh weather conditions, animals, and falling branches, making it the ideal choice for most acreage properties.
• Overhead cable run — While less common in modern installations, this method may be necessary if you encounter solid rock or challenging terrain that complicates trenching. Overhead installations must adhere to specific clearance heights and support poles, which can significantly elevate overall costs.

For most properties in Bellingen, Coffs Harbour, and the Mid North Coast, the underground option remains the most beneficial choice. Your electrician in Bellingen can evaluate your site and recommend the most effective route for your installation.

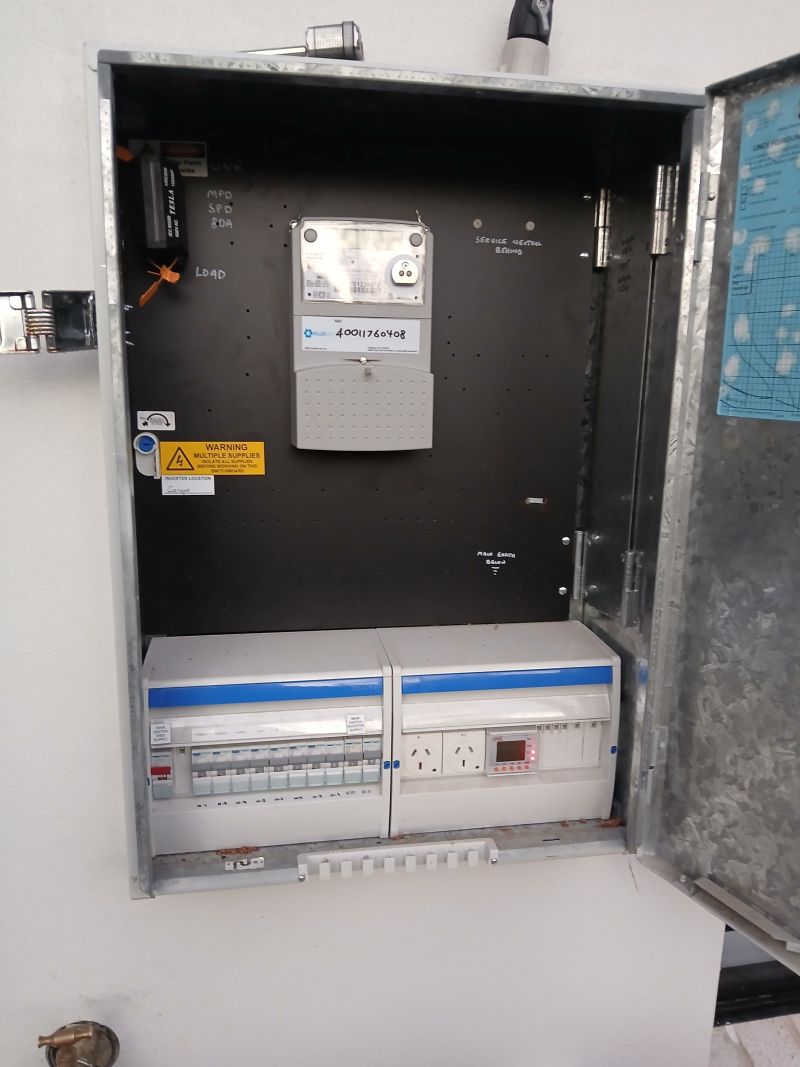

Establishing a Dedicated Sub-Board for Effective Power Management in Your Shed

Simply running a single cable to the shed is inadequate if you intend to plug in devices without any additional infrastructure. Any shed that benefits from a proper power supply must be fitted with its dedicated sub-board, also known as a distribution board. This arrangement functions as a mini switchboard within the shed, effectively managing all electrical circuits and ensuring safe operation for all devices.

Your sub-board typically incorporates the following components:

• Main switch — This switch enables you to isolate all power to the shed independently from the main house, providing an extra layer of safety and control.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They instantly cut the power in milliseconds if a fault occurs, which is critical in a shed environment that is often exposed to moisture, dust, and potential damage.
• Circuit breakers — These provide individual protection for each circuit in your shed, covering lighting, general power, and dedicated tool circuits, ensuring you can operate multiple devices without risk of overloading.

If your house’s main switchboard is older, your electrician may also recommend upgrading the switchboard to effectively handle the additional load directed to the shed, ensuring that all connections are safe and efficient.

What Key Equipment Should Be Installed Inside Your Shed?

The specific installations performed by your electrician inside the shed will be customised based on its intended use. Here’s a detailed overview of what these installations typically involve.

Enhancing a Basic Storage Shed Setup for Optimal Functionality

For a shed primarily used for storing tools, a ride-on mower, or general equipment, consider the following installations:

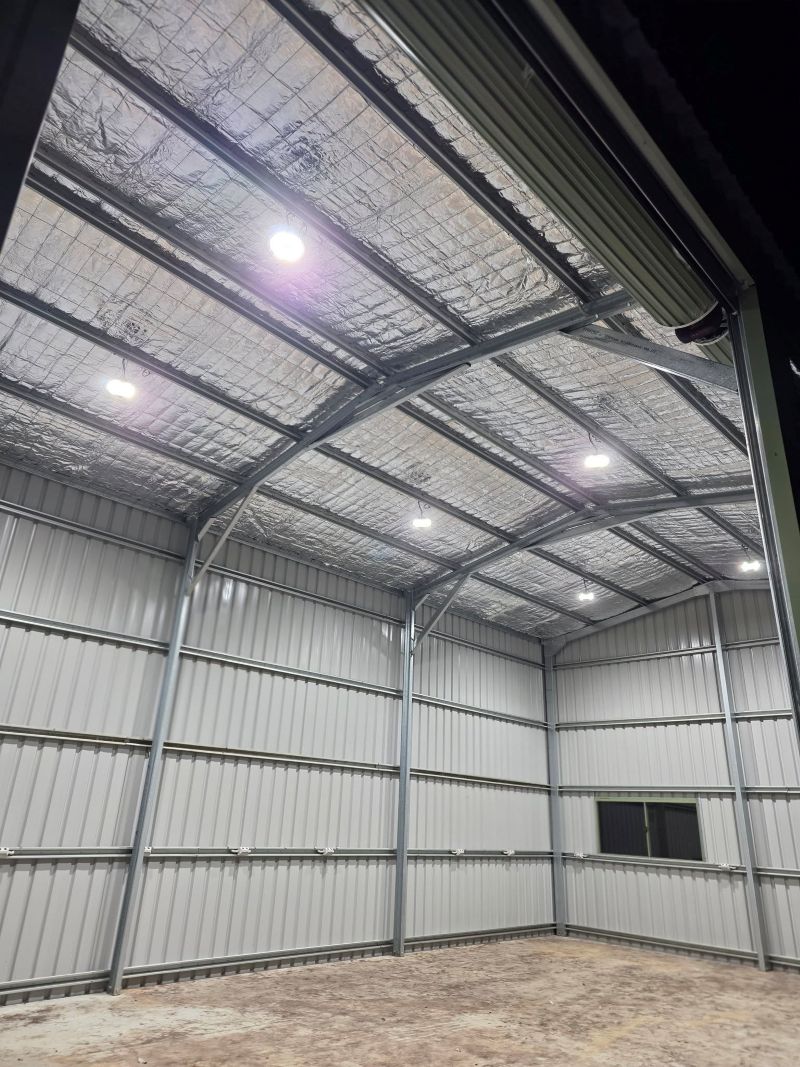

• LED batten lights — Installing one or two ceiling-mounted LED battens can effectively illuminate the entire space. Your trusted electrician can provide recommendations on the most suitable lighting layout based on the shed’s dimensions and your specific storage needs, ensuring that no area is left dim.

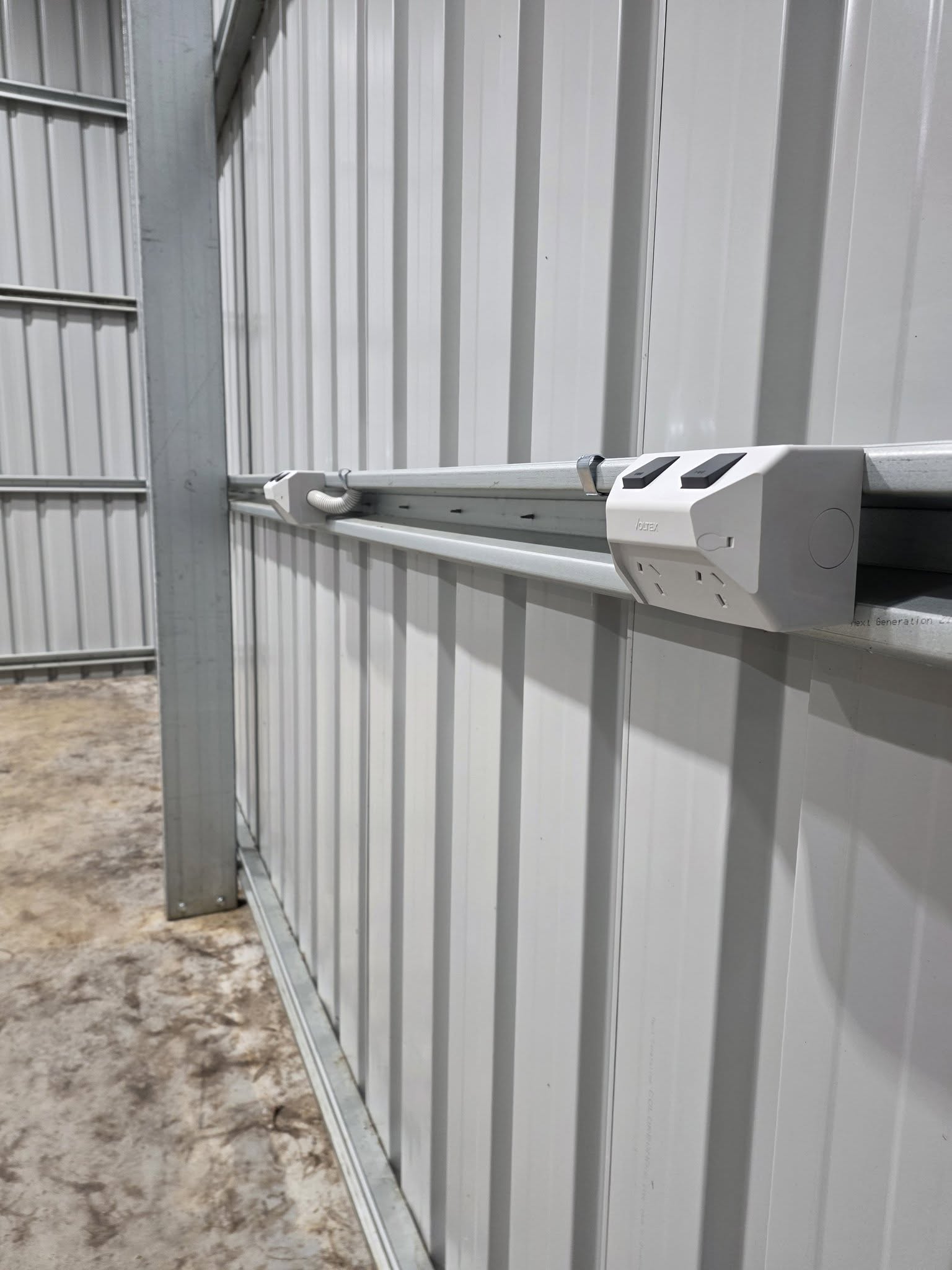

• Two to four general power points — This quantity is sufficient for plugging in chargers, radios, or a drop saw whenever needed. Standard power points and switches will operate on a single circuit, ensuring versatility for various tools while maintaining safety standards.
• External light — An outdoor-rated LED light positioned above the door ensures safe access to the shed without fumbling in the dark, significantly enhancing both safety and convenience for users entering or exiting.

Designing a Fully Powered Workshop Shed for Maximum Efficiency

If you frequently utilise power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements will extend beyond basic setups and demand meticulous planning:

• Multiple circuits — Establish separate circuits for lighting, general power, and specialised power tool outlets. This setup prevents lights from flickering each time you activate a saw, ensuring a stable and uninterrupted working environment.
• Higher-rated power points — Install 15-amp or 20-amp outlets to effectively accommodate heavier tools, ensuring you have the right power supply for your equipment and avoiding potential electrical issues.
• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height instead of solely at skirting level, facilitating ease of use based on your workbench arrangement and overall workflow.
• Dedicated lighting — Provide brighter, targeted lighting over work areas, utilising LED high-bays for larger sheds to significantly enhance visibility and safety while working on intricate projects.

For comprehensive guidance on establishing dedicated circuits for heavy tools, check out Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment, which delves into the specifics of effective wiring solutions tailored to your specific needs.

Equipping a Comprehensive Workshop with Essential Three-Phase Power

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying solely on single-phase power may not suffice. This is where three-phase power becomes essential to meet your operational demands.

Three-phase power provides a more stable and higher-capacity power supply, allowing you to operate multiple heavy-duty machines simultaneously without compromising performance or risking equipment damage. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast area, so planning ahead is essential).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs to ensure safety and compliance with local regulations.
• Utilise heavier cabling — Keep in mind that three-phase cable runs can be more expensive, especially over extended distances, so careful planning is vital to avoid unexpected costs.
• Set up three-phase outlets — These heavy-duty sockets are specifically rated for the equipment you plan to operate, providing the necessary power for effective functioning of your tools.

If you’re uncertain about whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is beneficial and when a properly configured single-phase system will suffice. We also offer complete three-phase switchboard installation if that aligns with your requirements.

Investing in Essential Surge Protection for Your Shed

Properties located on the Mid North Coast often experience severe lightning storms. A direct or nearby strike can potentially damage everything within your shed, including tools, chargers, fridges, and devices plugged in, leading to costly repairs and potential safety hazards.

Investing in a reliable surge protection device, installed within the sub-board, serves as inexpensive insurance against electrical surges. It absorbs voltage spikes before they can reach and damage your valuable equipment. For sheds that house costly tools or a workshop setup, this precaution proves invaluable and could save you significant costs in the long run, ensuring your equipment remains safe and functional.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely switch to generator power during outages, maintaining critical operations during emergencies and preventing disruption.

What Are the Council Approval and Compliance Requirements for Shed Wiring?

Here are several significant considerations to bear in mind:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to reduce labour costs, all electrical work — including cabling, connections, and sub-board installation — must be carried out by a licensed contractor who will issue a Certificate of Compliance (CCEW) upon completion.
• Depth of underground cable must comply with AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure adherence to during the installation process to guarantee safety.
• If the shed is newly constructed, you may need development approval depending on your local council and the size of the shed. While the electrical work itself might not require a separate permit, the overall construction may necessitate one, so checking local regulations is advisable.

Hack-It Electrical Solutions proudly holds the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete, ensuring peace of mind and adherence to local regulations for your safety and satisfaction.

Understanding the Costs Involved in Shed Wiring on Acreage Properties

Each shed presents unique challenges — including distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions impacting trenching. However, here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500, this option covers the essentials for functional use.
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500, this setup allows for greater flexibility and efficiency in your workspace.
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+, this comprehensive installation meets the demands of serious hobbyists or professionals.

Be aware that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs significantly. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed’s intended use and requirements.

If you seek a straightforward quote for your specific setup, don’t hesitate to call us at 0402 079 803 or contact us here for personalised assistance.

What Are the Commonly Asked Questions Regarding Shed Wiring?

Can I Wire My Shed Myself in NSW?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This includes tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers to you and your property. Your electrician will issue a Certificate of Compliance once the work has been completed, ensuring everything is up to standard and compliant with legislation.

How Deep Must Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth for your specific property circumstances, ensuring compliance with safety regulations to protect your investment.

Do I Need a Separate Meter for My Shed?

In most cases, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed functions as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor to ensure compliance with local regulations and standards.

How Long Does It Take to Wire a Shed on Acreage?

A standard shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you’re digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first, so planning is crucial.

Can I Run Power From the Shed to Other Buildings?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are adequate from the outset, rather than trying to add components later and potentially creating issues with power distribution, which can lead to costly rectifications.

Ensure Your Shed Wiring is Done Right by Engaging Professional Help

If you are situated on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation tailored to your specific operational needs.

Contact us at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote that meets your requirements effectively.
