Solar Switchboard Upgrade for Battery and Air Con in Chelmer

Project Location: Chelmer
Project Scope: Switchboard enhancement
Result: Comprehensive single-phase switchboard upgrade effectively supporting a 17.86kW solar installation, 30kWh battery storage, and ducted air conditioning—eliminating the need for a three-phase upgrade.

Discover Why Precision Electrical & Air is Your Best Choice for Switchboard Upgrades

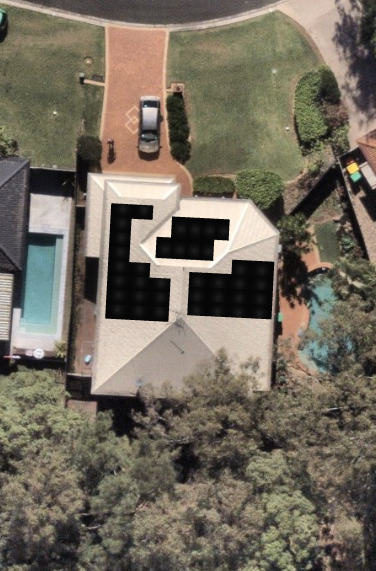

This Chelmer homeowner undertook an extensive renovation project, which featured the installation of a highly efficient 17.86kW single-phase solar photovoltaic (PV) system, a robust 30kWh modular battery storage solution, and comprehensive blackout protection for enhanced safety. Additionally, a modern ducted air conditioning system was integrated into the renovation plan. Before connecting these advanced systems, it was essential to assess and upgrade the existing switchboard to ensure it met current safety standards and could effectively manage the increased electrical loads resulting from these installations.

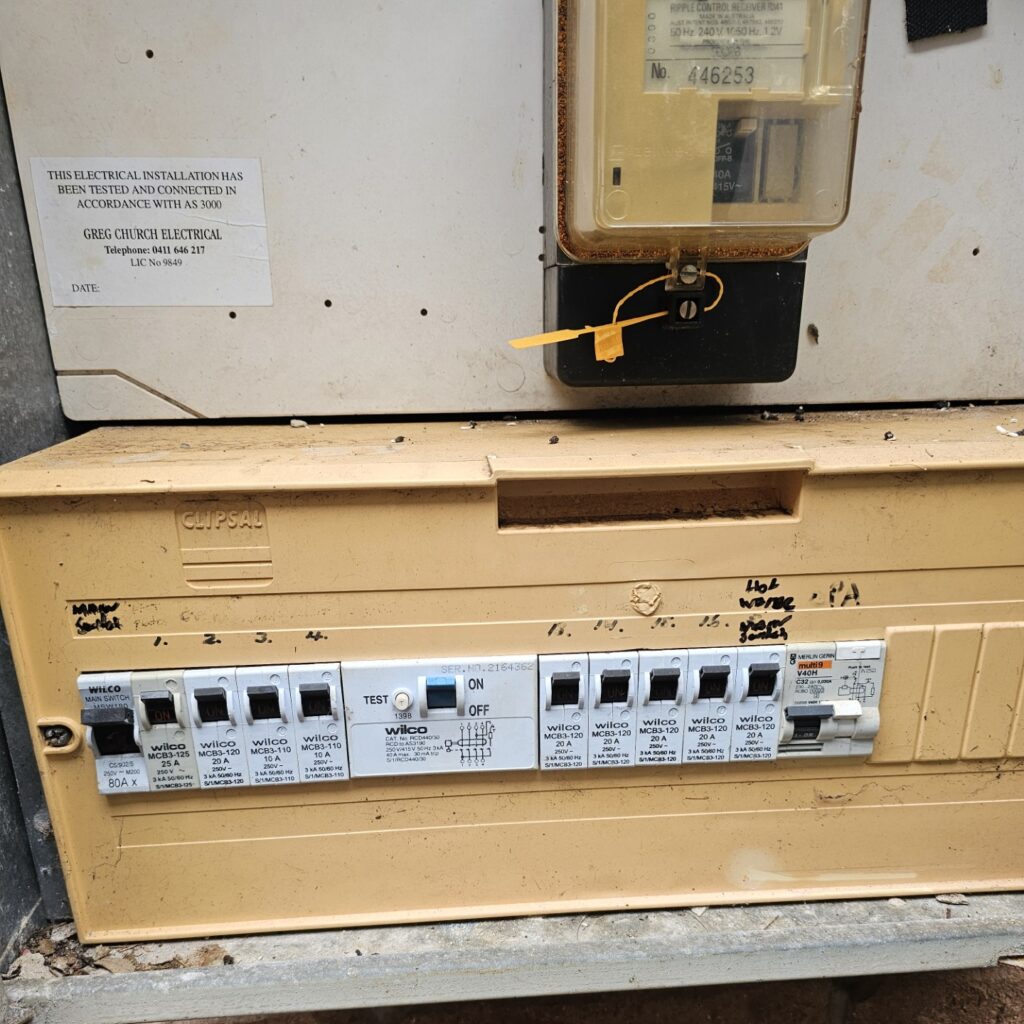

The previous switchboard was outdated, equipped with old-fashioned circuit breakers, and had only one Residual Current Device (RCD) for the entire property’s protection. This limited capacity prevented the integration of solar energy and battery storage solutions. Additionally, the labelling of circuits was insufficient, rendering it non-compliant with modern regulations governing current energy generation systems. This lack of compliance posed a significant risk to the effective operation of the upgraded systems, potentially leading to severe safety hazards.

Is a Three-Phase Upgrade Essential for Your Electrical System?

When examining the specifications of a 17.86kW solar system along with a 30kWh battery, many homeowners mistakenly believe that a three-phase upgrade is mandatory. This misconception can lead to unnecessary costs, potentially ranging from $3,500 to $6,000, in addition to an extended approval process from Energex for any required network modifications.

Comprehensive Technical Evaluation to Assess Upgrade Necessity

Two critical factors significantly influenced the determination of whether a three-phase upgrade was necessary. Firstly, the supply cable for the residence was conveniently located near the street junction, allowing the voltage rise calculation for solar energy export to comfortably remain within Energex’s single-phase limit of 2%. Secondly, the solar and battery systems were designed specifically to reduce demand on the grid rather than increase it, meaning there was no technical rationale from the network’s perspective to necessitate a three-phase upgrade. Furthermore, the ducted air conditioning system was confirmed to meet essential parameters for efficient single-phase operation.

As a result, the decision was made to retain the existing single-phase configuration. The switchboard underwent a significant upgrade to ensure it could safely and effectively accommodate all new electrical loads without compromising safety or compliance with current regulations.

Thorough Analysis of Installed Components for Optimal Safety

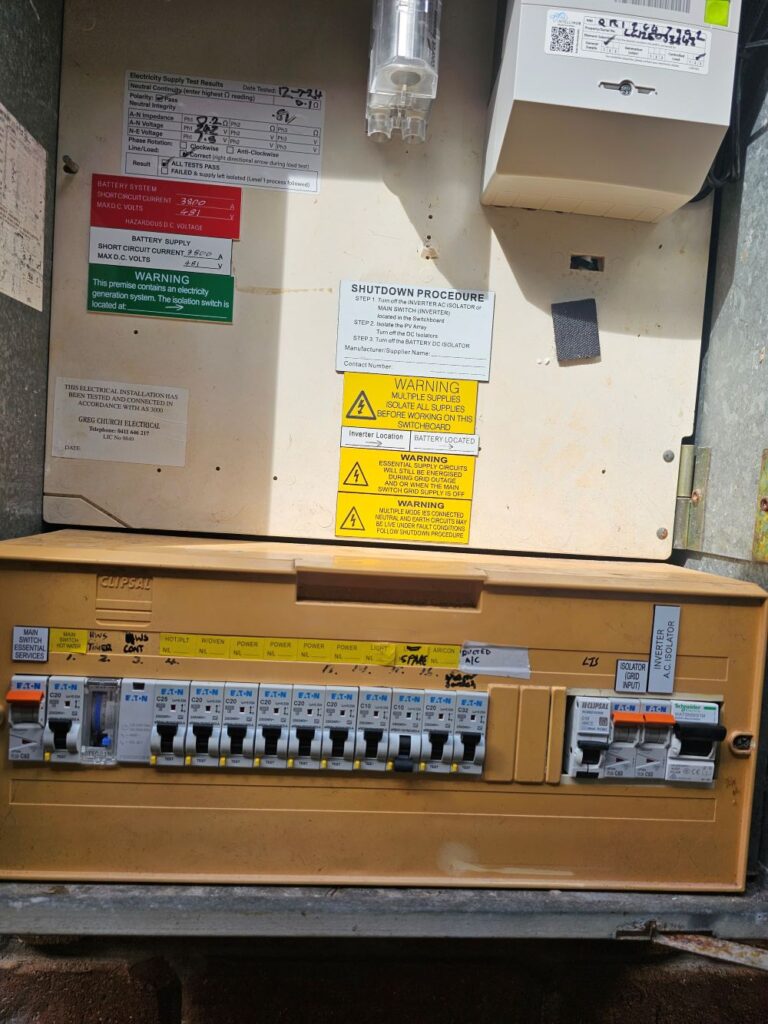

The existing switchboard was completely dismantled and underwent a comprehensive reconfiguration process. All circuit breakers were replaced with new, correctly rated units from Eaton, with each meticulously labelled for easy identification. The circuits were carefully separated; power, lighting, hot plates, ovens, split system air conditioning, and ducted air conditioning each received dedicated circuits to enhance safety and ensure compliance with prevailing regulations.

A timer was integrated into the hot water service to ensure it operates efficiently during peak solar generation hours. This strategic addition minimises reliance on the grid by optimising the use of the solar system’s output throughout the day. Moreover, a dedicated Hot Water Service (HWS) contactor circuit was installed to guarantee proper functionality.

The upgraded switchboard was designed for seamless integration with both the solar inverter and battery system. This included the installation of an AC isolator, a dedicated grid isolator, and comprehensive safety labelling that clearly indicated the battery system rating at 481V DC with a short-circuit current of 3800A, along with multiple supply warnings and a complete shutdown procedure. All electricity supply tests were conducted, successfully passing and documented for the switchboard.

The completed switchboard now fully complies with the latest Australian standards, ensuring it is appropriately set up for any future electrical service work required at the property.

Homeowner Experiences Benefits from Successful Upgrade

The homeowner has successfully acquired a fully upgraded and compliant switchboard that can safely support their solar system, 30kWh battery, and ducted air conditioning, all functioning efficiently within a single-phase configuration. Most importantly, they avoided unnecessary costs associated with a three-phase upgrade that was not essential for their unique circumstances.

Have You Received a Quote for a Three-Phase Upgrade and Are You Doubtful About Its Necessity?

While three-phase upgrades can be essential in certain scenarios, they are not universally required. If you have received a substantial quote for a switchboard upgrade and are uncertain about its relevance to your specific situation, allow Precision Electrical & Air to conduct a thorough analysis. We will provide you with a clear assessment based on your cable distance, load requirements, and the actual criteria that Energex will apply to approve your property.

We guarantee no upselling occurs; you will receive an accurate answer tailored specifically to your home.

Your Frequently Asked Questions Addressed by Our Electrical Experts

How do electricians determine the need for three-phase power in solar systems?

The assessment focuses on two primary aspects: voltage rise and load demand. Electricians evaluate the distance of the cable from your property to the street junction, calculating the potential voltage increase when your solar system exports energy back into the grid. Energex permits a maximum voltage rise of 2% for single-phase connections. If the cable run is short and the solar system’s export remains within this limit, a single-phase configuration is adequate. However, if the voltage rise exceeds this threshold, three-phase power becomes necessary to distribute the export load across three conductors, effectively maintaining the voltage rise within acceptable parameters.

Does a larger solar system automatically necessitate three-phase power?

No, the size of the system alone does not dictate the need for three-phase power. A 17.86kW solar system can operate legally and safely on a single-phase basis if the voltage rise calculations are favourable and no new high-demand loads are introduced to the property. The essential factors to consider include the cable length to the street junction, the current load profile of the home, and the technical requirements from the network distributor—not merely the kilowatt rating of the solar panels.

What is voltage rise, and why is it crucial for solar energy installations?

Voltage rise refers to the increase in electrical voltage that occurs when a solar system sends power back into the grid. The farther your home is from the street junction, the greater the resistance in the cable, resulting in a higher voltage rise during energy export. Excessive voltage rise can create complications for neighbouring properties connected to the same line. Network distributors such as Energex enforce strict limits—typically set at 2% for single-phase connections. Electricians must calculate whether your solar system’s performance remains within this limit to determine if single-phase or three-phase power is appropriate for your property.
