Three-Phase Power Solutions for Mid North Coast Homes

If you frequently find your circuit breaker tripping while using your welder or notice your lights dimming when your air conditioning kicks on, it’s a strong sign that your existing single-phase power supply is inadequate for your needs. This issue is especially common in areas like Bellingen, Coffs Harbour, and the broader Mid North Coast, particularly in rural locations and larger properties where significant electrical equipment is in operation.

This detailed guide offers crucial insights into three-phase power, the indicators that suggest you may need an upgrade, the steps involved in enhancing your electrical system, and an overview of the costs associated with this transition. We aim to minimise technical jargon while focusing on practical insights that will aid you in making an informed decision.

Discover the Advantages of Transitioning to Three-Phase Power: Key Differences from Single-Phase

In Australia, most residential properties utilise single-phase power, which can be compared to a single lane of electricity supplying your home. This system efficiently powers your lights, refrigerator, television, and various power tools without major difficulties.

In contrast, three-phase power functions like having three lanes of electricity. This setup provides a significantly higher and more reliable power supply, capable of handling much heavier electrical loads without experiencing voltage drops or overload issues.

To highlight the differences:

• Single-phase: This system consists of one active wire supplying power, which is standard for most homes. It typically delivers around 230V, adequately meeting the demands of regular household appliances.
• Three-phase: This configuration consists of three active wires that distribute power in a rotating manner. It supplies approximately 400V and is capable of supporting much heavier equipment without strain or the risk of overload.

Many residential streets across the Mid North Coast are equipped with single-phase wiring. three-phase power may already be available on your street; it simply hasn’t been connected to your property yet. This is an important factor to consider when contemplating an upgrade.

Recognising Signs That Your Single-Phase Power Supply Is Lacking

You may not realise your need for three-phase power until you start experiencing issues. Here are common warning signs often observed in properties located in and around Bellingen, Nambucca Heads, Urunga, and throughout the Mid North Coast:

• Lights dimming or flickering when equipment starts up: If your lights dim whenever a compressor, pump, or large motor starts, this suggests that your single-phase supply struggles to handle the startup current.
• Circuit breakers tripping often: This issue becomes more apparent when multiple heavy appliances are in operation simultaneously. While upgrading the switchboard may provide a temporary fix, ongoing overloads indicate that transitioning to three-phase power is the most effective long-term solution.
• Difficulty operating multiple heavy tools at once: If starting your welder necessitates shutting off the compressor, this clearly indicates that your power supply is at its limit.
• Voltage drops impacting equipment performance: If motors operate at reduced speeds, tools underperform, or sensitive electronics fail, low voltage can cause long-term damage to your equipment.
• Notification from suppliers that new equipment requires three-phase power: Many larger workshop machines, commercial air conditioning units, and irrigation pumps are specifically designed for three-phase power and will not function on a single-phase supply.

If two or more of these issues apply to you, it is advisable to arrange a thorough evaluation by a licensed electrician before investing in temporary solutions.

Typical Scenarios That Necessitate Three-Phase Power on the Mid North Coast

The Mid North Coast is home to a diverse array of rural properties, lifestyle blocks, farms, and semi-rural residences, with many individuals engaging in significant work on their land. Below are common setups that typically require three-phase power:

High-Powered Equipment for Workshops and Sheds

Large workshop machinery demands substantial power. If you operate any of the following, three-phase power is often the most viable option:

• MIG/TIG welders (larger models): Bigger welding machines generally require three-phase power.
• Lathes and milling machines: Especially those designed for industrial use.
• Large air compressors: Models exceeding around 5HP usually need three-phase power.
• CNC routers and plasma cutters: Frequently found in fabrication and woodworking workshops.

If you’re establishing a serious workshop, consider consulting our guide on Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment for more detailed information on creating an effective electrical layout.

Irrigation Systems and Water Pump Installations

Bore pumps and extensive irrigation systems on farms and larger properties often require three-phase motors. These pumps operate more efficiently, have longer lifespans, and can handle higher flow rates without the startup surge challenges that single-phase motors face, particularly on long rural supply lines.

Pottery Studios and Kiln Operations

The hinterland surrounding Bellingen and Dorrigo is home to a vibrant creative community, and we have outfitted numerous pottery studios. Larger ceramic kilns, especially those exceeding approximately 8kW, typically require three-phase power to achieve and maintain the necessary firing temperatures effectively.

High-Capacity Air Conditioning Systems

Ducted air conditioning systems rated above approximately 15kW generally require a three-phase supply. In larger properties — particularly those with multiple living areas or separate buildings — single-phase power is often insufficient to meet the demand. It is also wise to incorporate surge protection when operating costly HVAC systems.

Powering Additional Buildings and Sheds

If you plan to extend power to a large shed, studio, or granny flat, and are approaching the limits of your single-phase supply, this project often necessitates a three-phase upgrade. Our guide on Shed Wiring on Acreage provides an in-depth look at the wiring considerations involved.

Navigating the Steps to Upgrade to Three-Phase Power

Transitioning from single-phase to three-phase power is not a simple weekend task. The process involves multiple stages, some of which require coordination with your electricity distributor, which is Essential Energy on the Mid North Coast.

Here’s a detailed breakdown of the typical procedure:

Step 1: Conduct a Comprehensive Assessment and Provide a Quote

A licensed electrician will evaluate your current setup, including your switchboard, mains cable, meter location, and expected electrical usage. This assessment identifies the scope of work and determines if your existing wiring requires concurrent upgrades.

Step 2: Submit an Application to Essential Energy

Your electrician will submit an application to Essential Energy (the network distributor for the Mid North Coast) to request a three-phase power connection for your property. Essential Energy must confirm that three-phase power is available on your street or supply line and will outline any necessary network-side work that must be completed.

• If three-phase is already accessible on your street: The process is generally more straightforward and quicker.

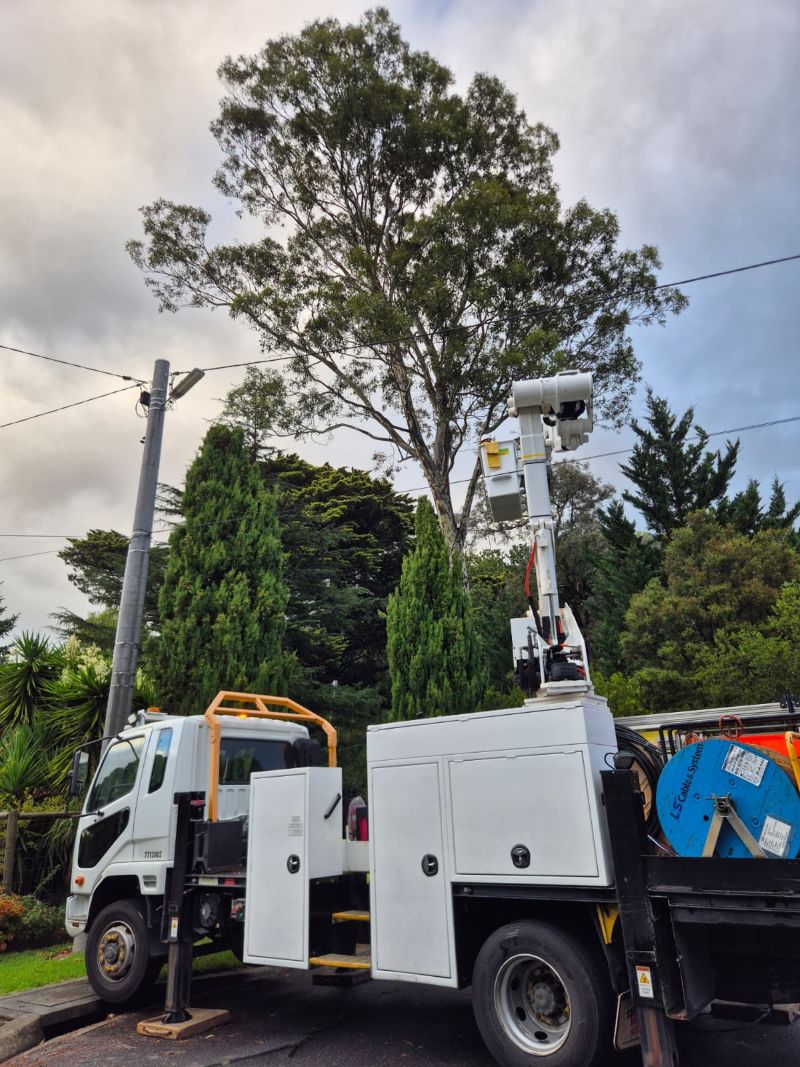

• If three-phase needs to be extended to your area: This process may be more time-consuming and costly, as Essential Energy may need to install new lines or upgrade a transformer.

Step 3: Carry Out Electrical Work at Your Property

Once Essential Energy grants approval, your electrician will perform the necessary work on your property:

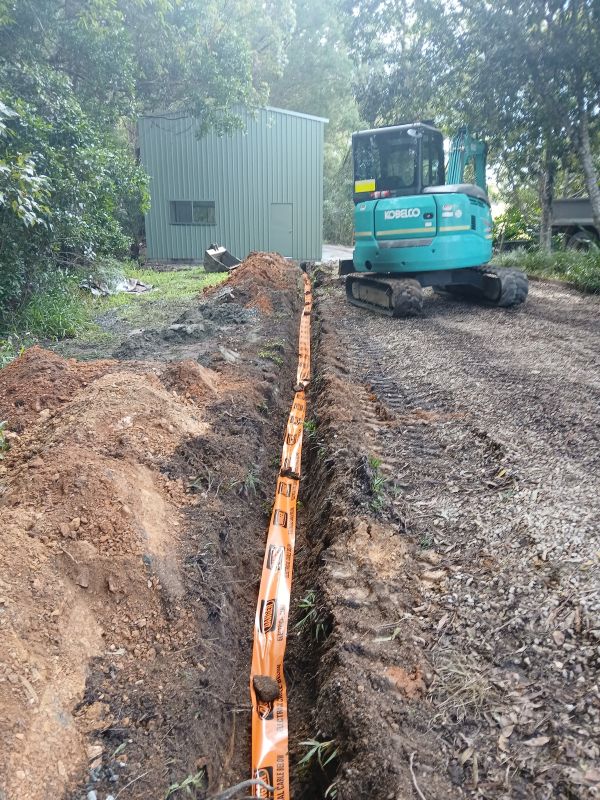

• Installation of new mains cabling: This involves running new cabling from the street supply to your meter and switchboard, as the existing single-phase mains cable is unsuitable for three-phase connections.
• Meter replacement: Essential Energy will either replace your existing meter with a three-phase meter, or your electrician will coordinate this with them.

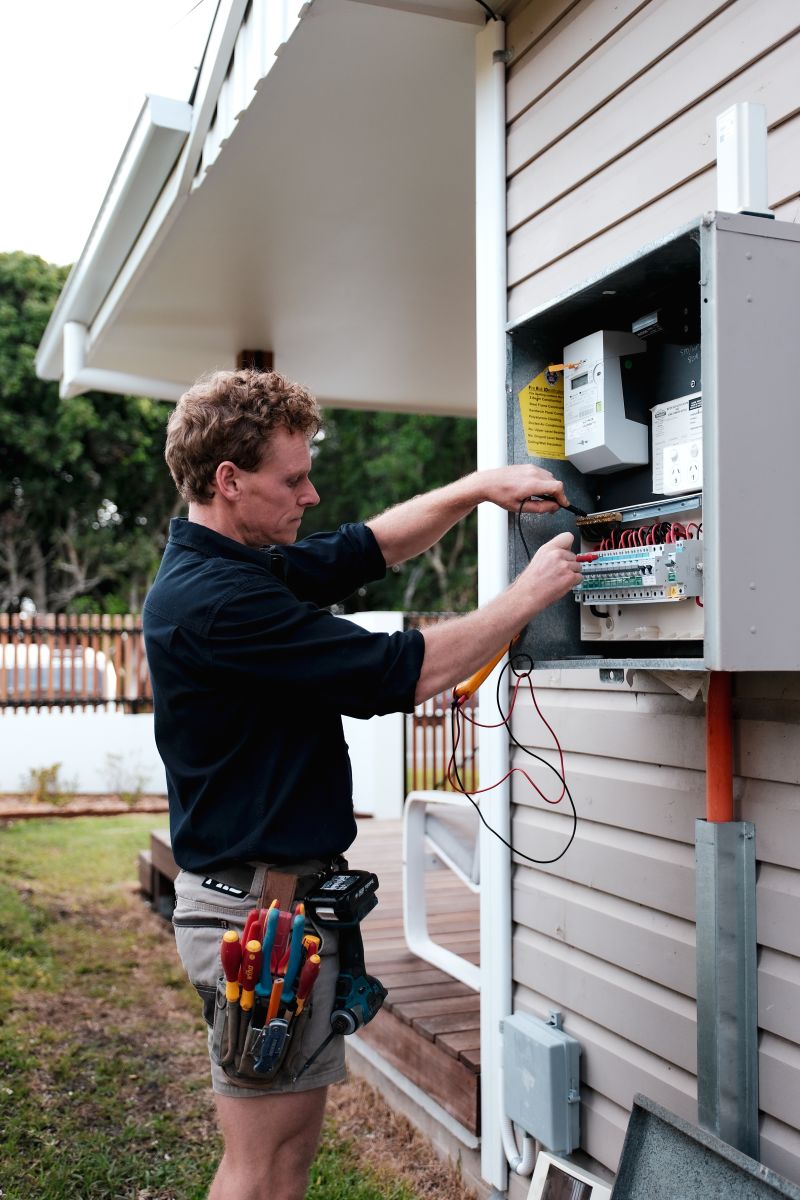

• Three-phase switchboard installation: Your old single-phase switchboard will either be replaced or upgraded to distribute three-phase power to the necessary circuits.
• Circuit wiring: New dedicated circuits will be installed for equipment requiring three-phase power, while your existing single-phase circuits will continue to function as they are.

If your property also needs new power points or switches in the workshop or shed, these additions are typically installed simultaneously to optimise labour costs.

Step 4: Conduct Final Inspection and Energisation of Your New Power Supply

All completed work will undergo a thorough inspection and certification. Following this, Essential Energy will energise the new three-phase connection. Your electrician will perform a final check to ensure that everything operates correctly.

Understanding the Timeline for Your Three-Phase Power Upgrade

The duration of the upgrade process can vary significantly based on factors related to Essential Energy:

• If three-phase is available on your street: The entire process (application, approval, electrical work, energisation) generally takes 4 to 8 weeks.
• If Essential Energy needs to extend the network: Expect the timeline to range from 8 to 16 weeks or even longer, depending on the extent of their work.

The actual electrical work at your property usually takes between 1 to 3 days. The majority of the waiting period is often associated with Essential Energy‘s application and connection process.

Assessing the Financial Implications of a Three-Phase Upgrade

The costs associated with upgrading to three-phase power can vary based on the complexity of the job, the distance from the street supply to your switchboard, and the fees required by Essential Energy for the network connection.

As a general estimate:

• Straightforward upgrade (three-phase already available on the street, short mains run): Starting from $8,000, which encompasses switchboard upgrades, new mains, and Essential Energy fees.
• More complex upgrade (longer mains run, extension needed from Essential Energy network, significant switchboard modifications): Starting from $15,000 and potentially much higher if Essential Energy needs to enhance existing infrastructure.

The connection fees from Essential Energy are separate from the costs charged by your electrician, and these fees vary based on location and the extent of work required on the network side. Your electrician should provide a detailed breakdown of both costs prior to proceeding.

Consider whether you might benefit from installing a generator changeover switch as part of the upgrade, particularly on rural properties where power outages are more frequent.

Legal Requirement: All Electrical Work Must Be Conducted by a Licensed Electrician in NSW

This requirement is non-negotiable. In New South Wales, all electrical work, including three-phase upgrades, private power pole maintenance, switchboard installations, and circuit wiring, must be performed by a licensed electrical contractor. Undertaking DIY electrical work is illegal and poses significant safety risks.

Hack-It Electrical Solutions holds NSW Electrical Contractor Licence #230609C. We manage three-phase upgrades throughout the Mid North Coast, from Bellingen and Dorrigo to Coffs Harbour, Sawtell, Woolgoolga, Nambucca Heads, and all areas in between.

Addressing Your Concerns: Commonly Asked Questions

Is It Possible to Use Three-Phase Equipment with a Single-Phase Power Supply?

In some instances, yes — this can be accomplished by utilising a phase converter or a variable frequency drive (VFD). These solutions can increase your costs, may affect equipment performance, and might not be suitable for all applications. For those with multiple items requiring three-phase power, upgrading to a three-phase supply is generally the more prudent long-term investment.

How Can I Determine the Availability of Three-Phase Power on My Street?

Your electrician can confirm this information with Essential Energy during the assessment. In many urban and semi-rural areas on the Mid North Coast, three-phase power is already available along the street; it simply hasn’t been connected to your property yet.

Will Upgrading to Three-Phase Power Increase My Property’s Value?

It can, especially for rural and semi-rural properties. Three-phase power acts as a significant selling point for prospective buyers planning to operate workshops, farms, or home businesses, as it indicates that the property’s electrical infrastructure is robust and capable of supporting more than just basic residential needs.

Do I Need Three-Phase Power for Solar Panel Installations?

Standard residential solar systems typically operate on single-phase power. larger commercial-grade solar installations (usually exceeding 15kW) do require three-phase power. If you are considering a substantial solar setup alongside other significant electrical loads, it is advisable to factor in three-phase power as part of your overall energy strategy.

What Are the Ongoing Cost Differences Between Single-Phase and Three-Phase Power?

Your electricity rates will not change simply because you switch to three-phase power. You will pay for your actual usage, just as before. The daily supply charge may be slightly higher under a three-phase tariff, but the difference is minimal. The real cost benefits lie in the enhanced efficiency and reliability of your equipment.

Are You Ready to Discover If Three-Phase Power Is Suitable for Your Property?

We are level 2 electricians prepared to assist you in overcoming your power limitations. If you are planning a workshop, shed, or equipment upgrade that requires substantial power, contact us. We will assess your current setup, verify the availability of three-phase power with Essential Energy, and provide you with a clear outline of what is involved and the associated costs.
