Victorian Tiles Restoration for Reviving Worn Minton Floors

What Factors Keep the Minton Floor in Walsall Looking Dull Despite Cleaning Efforts?

Assessing the Condition of Victorian Tiles for Effective Restoration

If your Victorian tiles seem lacklustre despite multiple cleaning attempts, it’s likely due to trapped contaminants and structural instability rather than just surface dirt. The Minton hallway in Walsall displayed a compromised surface, muted colours, loose tiles, an outdated sealant, and residues locked within the clay body. Standard mopping only redistributed grime, failing to remove it effectively. This scenario distinctly categorised the project as one of restoration, necessitating specialized methods beyond general cleaning practices.

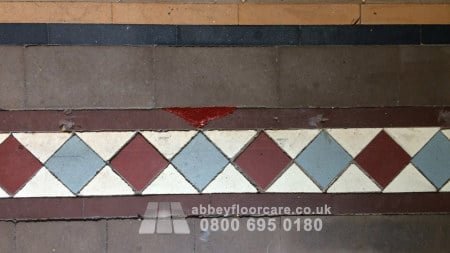

The Walsall hallway retained its status as an original patterned entrance floor; however, the surface did not exhibit the vibrant contrasts of red, buff, cream, and dark clay typically found in a restored Minton layout. Foot traffic had embedded fine dirt into the tile surface, while the old topical sealer had dulled the finish. Grout lines darkened due to the accumulation of surface residues. A similar situation arose with the Minton tile floor restoration in Ovington, where previous coverings and compacted dirt obscured the original design until restoration unveiled the intricate pattern.

Walsall features a significant collection of late Victorian and Edwardian terraced homes, alongside interwar semi-detached houses and post-war residential developments. Much of the older housing stock traces back to the late 19th and early 20th centuries, making Victorian tile floors especially common in entrances, porches, pathways, and occasionally kitchens within these historic properties. Located in the West Midlands metropolitan area, Walsall is overseen by Walsall Council, with most central regions identified by the WS postcode districts. The town’s rich industrial background and preserved period homes contribute to the presence of many original clay and encaustic tile floors, often hidden beneath modern coverings or outdated sealers.

What Role Do Hidden Residues Play in the Dullness of Tiles?

The existence of trapped residues explains the worn appearance of the hallway, despite years of cleaning. The porous clay surface allowed dirt, old cleaning solutions, waxes, and coating residues to settle below the visible layer of the tiles. While fresh water might moisten the contamination, it failed to remove it. This illustrates the practical implications of tile porosity on an ageing Minton floor: soil seeps into the pores, collects around grout lines, and creates a flat appearance, despite diligent cleaning efforts.

The previous topical sealer had formed an inconsistent barrier across the floor. What started as a temporary shine had degraded into sticky residues, trapping grime and creating darker patches in areas where the finish had worn thin due to foot traffic. The restoration process required a meticulous stripping of the old sealer, releasing the surface residues, thoroughly rinsing the floor, and extracting the resulting slurry with a wet vacuum prior to applying any protective finish.

Contamination from carpet adhesives also posed a challenge, as many Walsall hallway tiles had been previously covered with carpet, linoleum, or vinyl over the years. A hidden layer may be concealed beneath thick glue, bitumen residues, tape remnants, and stains, becoming apparent only when the covering is removed. In this instance, no significant adhesive presence was found in the hallway; however, the inspection sought brownish glue, black bitumen, softened coatings, and scraper marks, as these residues can impact the restoration process.

What Impact Do Moisture Behaviour and Tile Stability Have on Restoration Projects?

The characteristics of old permeable subfloors significantly influenced the cleaning and sealing methods applicable to the Walsall floor. Excess water can infiltrate the porous clay, reach the underlying bedding, and lead to tile displacement, lifting, moisture issues, salt reactions, or an unstable foundation before sealers are applied. This moisture behaviour demanded an approach focused on controlled cleaning, careful rinsing, and extraction rather than flooding the hallway with water.

Tile movement was a vital factor to consider since water and slurry can seep beneath raised edges and into gaps. Once slurry dries beneath the tile surface, the floor can continue to look dirty from the edges even after the main surface has been cleaned. The restoration process treated the floor as a cohesive historical assembly, requiring the harmonious interaction of clay tiles, grout lines, bedding, moisture pathways, and breathable protective measures.

During the assessment, the condition of missing tiles, backfilled doorway patches, exposed subfloor areas, cement levelling compound backfill, and previous repair infills were also evaluated. Cement levelling can disrupt the original tile pattern, obstruct visual continuity, and leave a repaired hallway looking patchy instead of seamless. This Walsall floor primarily required local resetting rather than extensive replacement work; however, evaluating the doorway, original tiles, and subfloor condition ensured that a simple clean was not misconstrued as a proper restoration.

Why Was This Restoration Project Critical for the Floor’s Longevity?

This undertaking was classified as a restoration because mere cleaning would not resolve loose tiles or rectify the inadequacies of old coatings. The project was essential to address compacted grime, surface coatings, grout line residues, moisture risks, and unstable areas before any sealing could occur. A similar restoration process is documented in the Victorian tile restoration case study in Penkhull, where loose sections and damaged joints required reintegration into the overall floor layout to achieve a visually coherent result.

The original Minton pattern had not disappeared; rather, it was obscured from view. Restoration effectively eliminated the old products and ingrained dirt that muted the colours, ultimately protecting the clay with a breathable finish instead of a heavy surface film. After professional intervention, the floor was expected to showcase a significantly enhanced appearance, and a professionally restored and properly sealed Victorian tile floor is considerably easier to clean and maintain compared to a worn or improperly treated floor.

Regular maintenance is crucial for preserving the restored clay surface. This involves removing dry grit before wet mopping and opting for a pH-neutral cleaner instead of harsh household chemicals. Strong cleaners should be avoided as they may leave alkaline residues, bleach grout lines, and shorten the lifespan of the sealed finish. Broader maintenance principles for older porous clay floors are elaborated in the Victorian and Minton tile cleaning hub, which supports the aftercare decisions made in this Walsall case study.

What Major Issues Led to Loose Tiles and Deep Soil in This Restoration Project?

The presence of loose Minton tiles and deep soil turned this tired hallway into a restoration project, as the underlying issues lay beneath the visible surface. The homeowner observed dull colours, dark joints, and unstable areas; however, the root causes were movement, trapped residues, and contaminated slurry paths beneath and between the original tiles. To resolve these issues, structural re-bedding was essential before deep cleaning could effectively restore the floor to an even condition.

The removal of slurry was crucial, as loosened soil, rinse water, mineral salts, and old coating residues needed to be extracted from the tile pores rather than allowed to dry within them. The restoration process used controlled water, agitation, rinsing, and wet vacuum removal to ensure the floor was cleaned without excessively saturating the old permeable sub-floor. Similar movement and moisture behaviours are discussed in the right way to restore Victorian tiles properly, illustrating how stabilization and breathable protection are integral components of the historical flooring restoration sequence.

Stabilising loose tiles is a prerequisite before deep cleaning can uniformly restore the floor.

What Techniques Were Utilised to Stabilise the Walsall Hallway While Preserving Original Tiles?

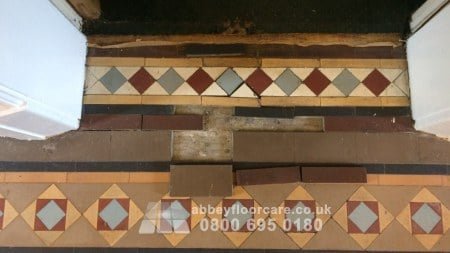

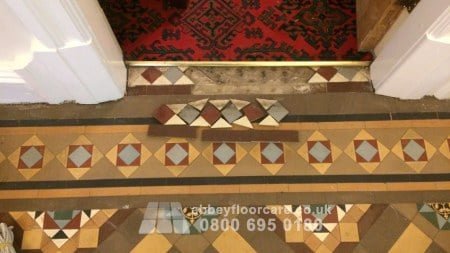

Scrubbing a loose Minton hallway prior to stabilisation poses a risk of driving slurry beneath the tiles, potentially damaging fragile edges. In this instance, the loose sections were carefully lifted, old bedding and residues were removed, and the tiles were reset to maintain the integrity of the original layout. This approach ensured that repairs remained integral to the restoration workflow rather than evolving into a separate repair narrative.

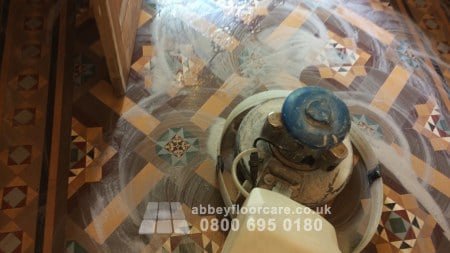

Thorough surface cleaning would have eliminated some visible grime, yet it would not have addressed the old sealer, grout smears, mineral salts, and residues lodged within the pores. Controlled restoration employed an alkaline cleaner, scrubbing pad, rotary machine, clean rinse water, and wet vacuum extraction to eliminate contaminated slurry from the tile surface and joints. In instances requiring acid wash neutralisation due to alkalinity, traces of cement haze or mineral salts were rinsed away before moisture could evaporate and disturb the colour balance.

Careful stabilisation safeguarded the original tiles, as the process was dictated by the floor’s condition rather than applying a one-size-fits-all approach across the entire area. Broken tiles, missing tiles, and the need for matching replacement tiles were all taken into account to ensure that the pattern exhibited continuity. This hallway primarily required resetting, thorough cleaning, and breathable protection. This sequence restored the floor’s appearance, simplified surface maintenance, and avoided grinding down the historic clay face.

How Did the Restoration Process Enhance Clarity While Preserving Historic Character?

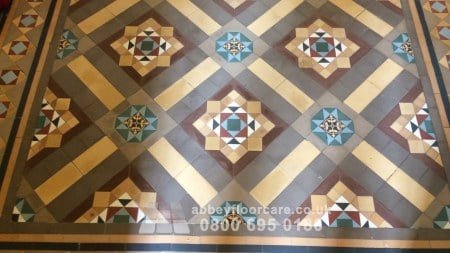

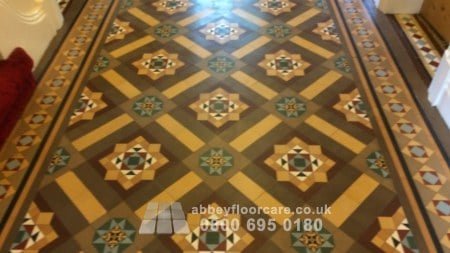

If your Victorian tiles reveal colours hidden beneath layers of dull wear, restoration should enhance definition without erasing the genuine age of the floor. The Walsall floor regained its vibrant contrasts as old coatings, embedded residues, and dark joint contamination were meticulously removed from the clay surface. The original Minton pattern became more prominent, while authentic signs of traffic wear and historical character remained evident.

Historic dishing was preserved, as grinding the floor flat would have removed original fired clay from the tile surface. Dishing represents permanent wear accumulated over decades of foot traffic and should not be perceived as a failure when the finished floor retains its historical context. The protective finish applied was a breathable colour-enhancing sealer that penetrated the pores, was buffed off without leaving a superficial coating, and provided stain resistance while allowing moisture to escape.

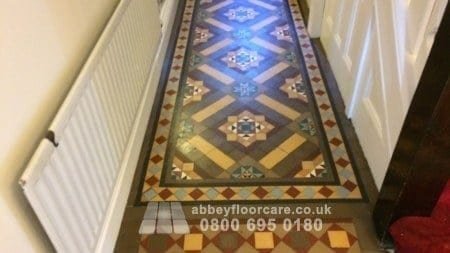

The completed hallway showcased a significantly enhanced appearance compared to its pre-restoration state and, in many respects, surpassed how it might have looked under outdated domestic coatings. The sealed surface became easier to maintain, as removing dry grit, employing neutral pH cleaning, and resealing at appropriate intervals helped preserve the restored colour depth. The behaviour of colour in worn patterned clay is further explored in restoring colour and pigment to faded Victorian mosaic tiles, which delves into surface wear and clay pigment depth in greater detail.

Where Can You Access More Information on Common Victorian Tile Problems?

Gaining an understanding of common Victorian tile issues necessitates a comprehensive perspective since residues, loose sections, faded colours, and missing pieces rarely occur in isolation. The Walsall hallway exemplifies why historic floors require a holistic restoration approach: the original tiles, grout lines, moisture pathways, coating histories, and final protective measures all contributed to the outcome. A related Minton hallway project is detailed in the Minton tile hallway restoration in Stafford, where surface contamination and controlled extraction similarly shaped the final appearance of the floor.

When addressing broken tiles, missing tiles, or areas of old repair that disrupt a Victorian hallway pattern, sourcing and matching replacement tiles with care is essential. Quality repair work respects the original size, colour, border logic, thickness, and layout of the old floor to ensure new work blends seamlessly with the existing design. More extensive cleaning, sealing, and aftercare guidance can be found in the Victorian and Minton tile cleaning hub, which connects this Walsall outcome to broader material guidance.

Proper ongoing maintenance remains the key factor in prolonging the life of the restored floor. A tailored handover should provide practical advice: remove grit before wet cleaning, use a pH-neutral maintenance cleaner, avoid bleach or steam cleaning, and evaluate sealing processes before the surface begins to absorb spills rapidly again. Simple yet vital.
