Clay Soil’s Effects on Pipes in Caboolture Uncovered

If you live in Caboolture, Morayfield, Upper Caboolture, or anywhere in the Moreton Bay region and have observed wet spots, uneven surfaces, persistent blockages, or cracks in your foundation, you may be concerned that reactive clay soil is harming your underground pipes.

The foundation in Caboolture consists of reactive clay, which swells when wet and shrinks when dry, sometimes expanding or contracting by more than 20%. This continual movement exerts significant pressure on underground pipes during wet periods, leaving them at risk as the soil dries. Older clay sewer pipes and galvanised water pipes are particularly susceptible. Conducting a camera inspection can help detect damage early, while pipe relining often serves as an effective solution without requiring excavation of your garden.

In Caboolture, your underground pipes constantly contend with the surrounding soil.

Over time, this ongoing struggle can result in considerable damage to the pipes. By the time surface symptoms are visible, the underlying problems may have been developing for an extended period.

How Do Fluctuations in Clay Soil Result in Pipe Damage?

The process involves four key stages: wet swelling (compression), dry shrinking (loss of support), the repetitive stress of the cycle, and the common drought-to-flood transitions experienced in Southeast Queensland. Each cycle worsens existing cracks and misaligns pipe joints.

• The wet phase: Intense rainfall in Caboolture causes the clay to absorb water and expand. This expansion applies crushing pressure on pipes from all sides, which can either push joints together or pull them apart. Rigid pipe materials are especially vulnerable to cracking under such severe compression.
• The dry phase: After the rain stops and the clay dries, it contracts and pulls away from the pipes. This creates voids and gaps, which can lead to sagging, bending at joints, and the formation of bellies where water and sediment can collect.
• The repetitive cycle: This expansion and contraction occur repeatedly with weather changes—dozens of times annually in Caboolture’s climate. Each cycle increases stress on the pipes and gradually enlarges existing cracks.
• The drought-flood pattern: Southeast Queensland experiences alternating dry periods followed by intense wet seasons. After a prolonged dry spell, the clay shrinks considerably. When heavy rain finally arrives, the soil expands quickly, placing pipes—which may be situated in loose, cracked ground—under sudden, extreme pressure.

Which Pipe Types Are Most Susceptible to Damage?

Older clay sewer pipes (from homes built before the 1970s), galvanised steel water mains (from homes built before 1985), and concrete stormwater pipes are the most vulnerable. Modern PVC pipes generally perform better, yet inadequate backfill can still lead to joint separation. Copper pipes, while more flexible, can develop pinhole leaks at connection points due to repeated stress.

• Clay pipes: Clay sewer pipes, particularly those from homes built prior to the 1970s in Caboolture, are among the first to fail. Their brittle and heavy nature, along with mortar joints, makes them prone to cracking.
• Galvanised steel pipes: These pipes, used for water supply in homes built before 1985, are often compromised by internal corrosion and can crack as the clay soil shifts around them.
• Concrete stormwater pipes: While older stormwater systems can manage compression reasonably well, they often crack at joints during ground movement, allowing roots to penetrate through these openings.
• PVC pipes: Modern PVC pipes are more resilient to ground movement due to their flexibility. significant ground movement can still lead to joint separation, especially if backfill during installation was inadequate.
• Copper pipes: Commonly used in newer homes for water supply, copper pipes are more flexible than galvanised steel but can still develop leaks at connection points due to repetitive bending stress.

What Are the Warning Signs of Damage to Underground Pipes?

Stay alert for wet areas during dry weather, sinkholes or soft patches, sluggish drainage, unpleasant odours in your yard, abnormally lush grass patches, trees rooting heavily in a specific area, and cracks in your slab. If you notice two or more of these signs, schedule a camera inspection promptly.

• Wet patches in the yard during dry spells—this may indicate water leaking from a broken pipe and saturating the soil.
• Sinkholes or soft spots—these appear when soil is washed into a damaged pipe, creating an underground void.
• Slow drainage or frequent blockages—a cracked, shifted, or belly-shaped pipe can trap debris and roots at the damaged areas.
• Unpleasant odours in your yard—a cracked sewer pipe may leak sewage into the surrounding soil.

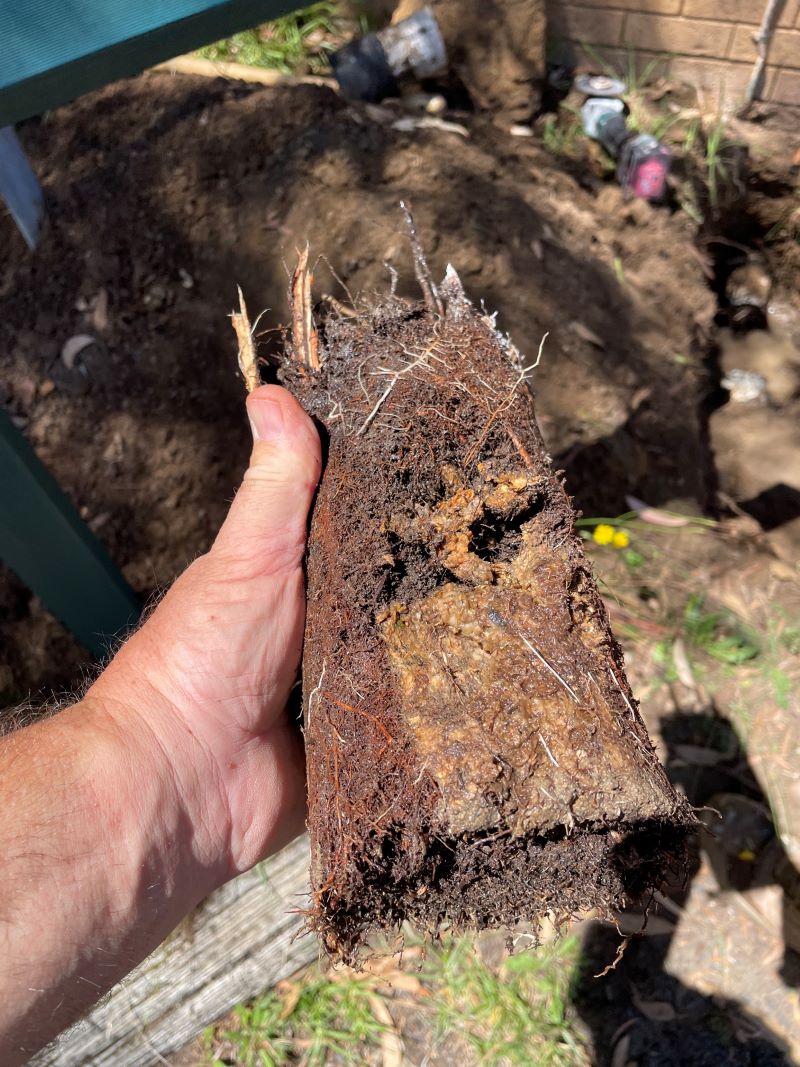

• Tree roots thriving in one area—trees often detect moisture and nutrients leaking from damaged pipes, leading to concentrated root growth.
• Cracks in your slab or foundation—movement in the clay soil affecting your pipes can also impact your home’s foundation.

How Do We Detect Pipe Damage?

We employ CCTV drain cameras to visually assess the condition of sewer and stormwater pipes in real-time, identifying cracks, root intrusions, misaligned joints, bellies, and collapses. For water mains, we utilise acoustic and thermal leak detection methods, along with a comprehensive property assessment to foresee potential future damage.

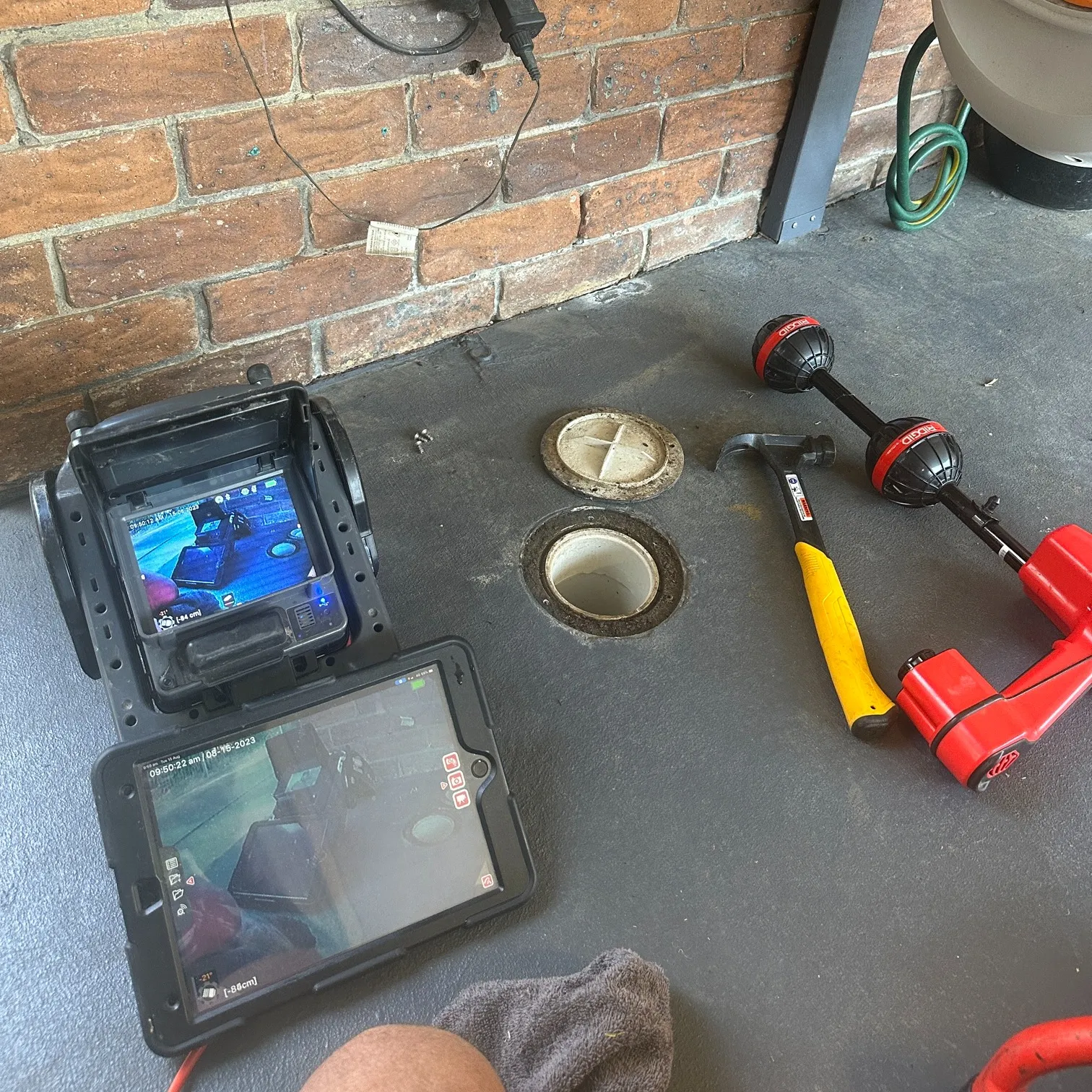

• CCTV drain camera inspection: A camera travels through the pipe, providing a live visual of its condition. We can identify cracks, breaks, root intrusions, misaligned joints, sediment buildup, and collapsed sections.
• Leak detection: To locate leaks in water supply pipes, we use advanced acoustic and thermal detection tools, allowing us to pinpoint issues without the need for excavation.
• Ground assessment: We examine the entire landscape—soil conditions, tree placements, pipe materials, and property layout—to understand the causes of damage and predict where future issues may arise.

What Are the Best Solutions for Addressing Pipe Damage?

Hydro jetting is used to clear immediate blockages. For cracked or root-infested pipes, pipe relining is the most effective solution—this method requires no excavation. Installing French and spoon drains can help alleviate future ground movement pressure. Full excavation is only necessary in cases of complete pipe failure.

• Hydro jetting: This technique clears roots, sediment, and debris from damaged pipes to restore proper flow, often serving as a preliminary step before performing a camera inspection.
• Pipe relining: This solution is ideal for cracked and root-invaded pipes in clay soil. A flexible resin liner is inserted into the damaged pipe and cured in place, eliminating the need for excavation. This solution is designed to last over 50 years.
• French drains: These systems redirect groundwater away from pipe corridors, reducing the pressure caused by the wet-dry cycle.
• Spoon drains: These surface drains capture and redirect rainwater before it saturates the soil surrounding underground pipes.
• Excavation and replacement: This option is reserved for completely collapsed pipes where relining is impractical. We replace the damaged section with new PVC pipes bedded on sand (rather than clay) to minimise future issues caused by ground movement.

Why Is Timely Action Essential to Prevent Pipe Collapse?

Damage to underground pipes in clay soil escalates over time. The situation never stabilises; it continually worsens. A minor crack today could result in total pipe failure tomorrow. Roots that infiltrate gaps will continue to grow, ultimately blocking the pipe entirely.

The most cost-effective repairs are those completed early. A camera inspection reveals the precise conditions underground, allowing you to plan necessary repairs before an urgent situation arises.

You can also verify our QBCC licence on the QBCC public register before scheduling a booking—we are a licensed plumbing contractor in Queensland.

Call 1300 793 962 or contact us to organise your underground pipe inspection.

Frequently Asked Questions About Clay Soil and Pipe Damage

How Can I Minimise the Risk of Clay Soil Damaging My Pipes?

While complete prevention isn’t feasible, you can reduce the risk of damage. Regularly watering the area around your home during dry spells can help lessen the shrinkage cycle. Effective tree management can decrease root pressure on pipes. Proper drainage systems also help mitigate soil saturation. Regular monitoring of pipes in reactive clay soil is essential—camera inspections can identify issues early.

What Are the Costs Involved in Repairing Pipes Damaged by Clay Soil?

Repair costs vary based on the extent of the damage and the chosen method. Hydro jetting to clear a blockage starts at around $350. Pipe relining for a damaged section typically begins at $4,000, while full excavation and replacement for a collapsed pipe can exceed $8,000, influenced by factors such as depth, length, and access. We provide accurate pricing after conducting a camera inspection.

Is Pipe Relining as Effective as Installing New Pipes?

In most cases, yes. A relined pipe features a smooth, jointless interior that actually improves flow compared to the original pipe. The resin liner resists root intrusion and corrosion, boasting a lifespan of over 50 years. The primary advantage of relining over replacement is that it preserves your garden, driveway, and yard.

How Can I Determine If My Property Has Reactive Clay Soil?

Caboolture, Morayfield, Upper Caboolture, and much of the Moreton Bay area sit on reactive clay. Signs to look for include deep cracks in the soil during dry spells, sticky clay when wet, and uneven ground levels throughout the seasons. If your home was built with special footings (deeper and reinforced), the builder likely recognised the reactive nature of the soil.

Who Should Not Read This Article?

• If you are located outside the Moreton Bay region—different soil conditions necessitate different solutions. Our services specifically cover Caboolture, Burpengary, Morayfield, Bribie Island, Narangba, and surrounding suburbs.
• If you intend to DIY plumbing work—underground sanitary plumbing must be carried out by a licensed plumber in Queensland.
• If you seek the cheapest quick fix without an inspection—we prioritise thorough assessments; we won’t begin excavation without first conducting a camera inspection.
