Concrete Thickness for Car Hoists: Key Considerations

Before installing a hoist in your workshop, it is essential to assess both the condition and specifications of your floor in relation to your hoist choice. A car hoist applies significant point loads through a limited number of bolts, making it critical for the underlying concrete slab to adequately support this weight. This concern is widespread among workshops in Sydney, Melbourne, Brisbane, and other locations across Australia, so let’s provide a straightforward answer to this important issue.

There is no universal answer regarding the required slab thickness for hoist installations. The correct thickness is determined by the specific type of hoist, its rated load capacity, and the installation guidelines set by the manufacturer. It is vital for your installer, and potentially a structural engineer in uncertain scenarios, to assess your floor’s suitability before proceeding with any installation.

What Factors Influence the Floor Requirements for Your Hoist?

There is no single measurement that fits all, as each hoist places unique loads on the floor. For example, a two-post hoist transfers the total weight of the vehicle through two columns, concentrating the load at the baseplate bolts. In contrast, a four-post hoist distributes the weight across four posts, resulting in a larger footprint. A scissor lift, which operates closer to the ground, impacts the slab differently. The necessary specifications depend on the type of hoist rather than a generic measurement.

Three primary factors determine the requirements for your slab.

Assessing Your Hoist Type and Load Capacity

A standard two-post hoist designed for cars and light commercial vehicles has specific load requirements that differ from a heavy-duty four-post hoist intended for larger 4WDs and vans. Hoists with higher capacities create greater loads at their anchor points, often requiring a thicker and more robust slab. You can find capacity information on the hoist’s data plate and in the accompanying manual, which forms the basis for your floor specifications.

Adhering to the Manufacturer’s Installation Guidelines

All reputable hoist manufacturers provide an installation manual that specifies the minimum concrete thickness, required concrete strength, appropriate anchor types, and necessary distances from any joints or edges of the slab. Following this manual is crucial for a successful installation. If the slab does not meet these standards, the installation should be deferred until compliance is achieved.

Examining the Condition and Composition of Your Existing Slab

Not all slabs of the same thickness offer equal support. Factors such as the quality of reinforcement, curing methods, proximity to control joints or cracks, and underlying conditions all affect the slab’s ability to support a hoist. An older slab that appears sound can still present significant risks. It is prudent to have a qualified professional evaluate the slab rather than relying solely on surface observations.

What Is the Recommended Thickness for Your Hoist Installation?

While many individuals seek a definitive figure for slab thickness, it is crucial that this specification comes from your hoist’s installation manual rather than a general article. The manual outlines the minimum slab thickness, concrete strength, and often specifies a minimum curing period before anchors can be installed. Heavier hoists, specific anchoring systems, or questionable slabs may require stricter standards.

This approach prioritises safety. The reliability of a hoist is directly linked to the integrity of the surface it is anchored to. Specifications must be sourced from the manufacturer of your specific model, and consulting a structural engineer is wise if the floor is older, uncertain, or marginal. Provide details about the hoist you’re considering and the condition of your floor, and we will assist you in determining the appropriate specifications.

Signs That Your Slab May Be Inadequate

While a visual inspection alone cannot fully assess a slab, certain indicators should be communicated to your installer before they provide a quote. If any of these conditions exist, mention them early to ensure a thorough evaluation and avoid complications on installation day.

Is Your Slab Thin, Aged, or Uncertain?

If you are in a leased space and cannot verify the floor’s thickness or construction details, it is crucial to clarify this question. Older industrial slabs can vary significantly in quality. If documentation is lacking, conducting a core test or having an engineer evaluate the slab can provide valuable insights.

Are There Cracks, Movement, or Hollow Sounds?

Visible cracks near the planned anchor points, areas that have lifted or settled, or a hollow sound when tapping the surface may indicate underlying issues. While these signs do not necessarily disqualify a slab from supporting a hoist, they require further investigation before any anchoring occurs.

Will the Hoist Be Installed Near a Joint or Edge?

Anchors placed too close to control joints, expansion joints, or slab edges can lead to inadequate anchoring. Hoist manuals specify minimum edge distances to mitigate this risk. The positioning of the hoist on the floor is as critical as the slab’s thickness.

Who Verifies the Safety of Your Floor?

This consideration is crucial for your safety. The suitability of your slab for a hoist is confirmed by your installer, who will adhere to the specifications outlined by the hoist manufacturer. If there is any uncertainty, a structural engineer should be consulted. This decision should not depend on informal sources like YouTube videos or casual recommendations, as the consequences of miscalculation could include a vehicle falling.

For standard installations on known, compliant slabs, the installer following the manual is usually sufficient. If the floor is old, undocumented, marginal, or if the hoist has a high capacity, involving an engineer for assessment is prudent. A core sample can verify the actual thickness and strength, while an engineer can determine if the slab can support the load or if modifications, such as a thickened pad or a new pour, are necessary.

At MetroBooths, we help workshops select the right hoist tailored to their specific site requirements rather than merely offering a product. Share information about your floor and the weight you intend to lift, and we will guide you to the appropriate hoist and identify any necessary checks beforehand.

Selecting the Best Hoist for Your Existing Floor

Often, the most practical solution is to choose a hoist that fits your existing slab, avoiding the extra costs associated with repouring concrete. A wide variety of hoist types are available, and the optimal choice depends on your floor’s characteristics, ceiling height, bay configuration, and the types of vehicles you service.

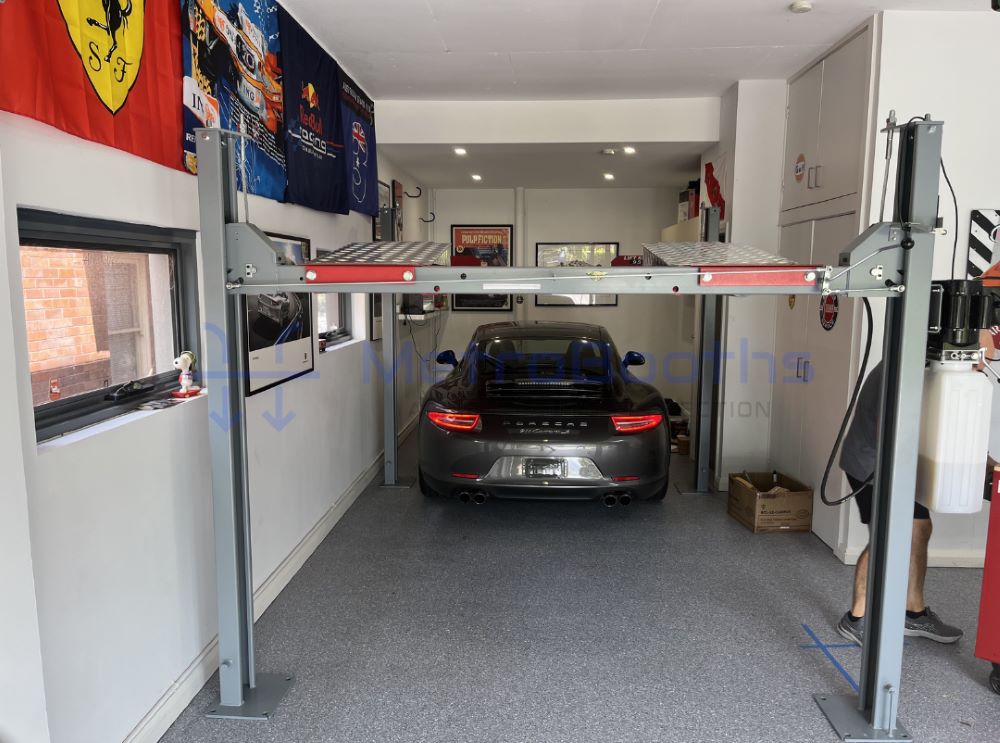

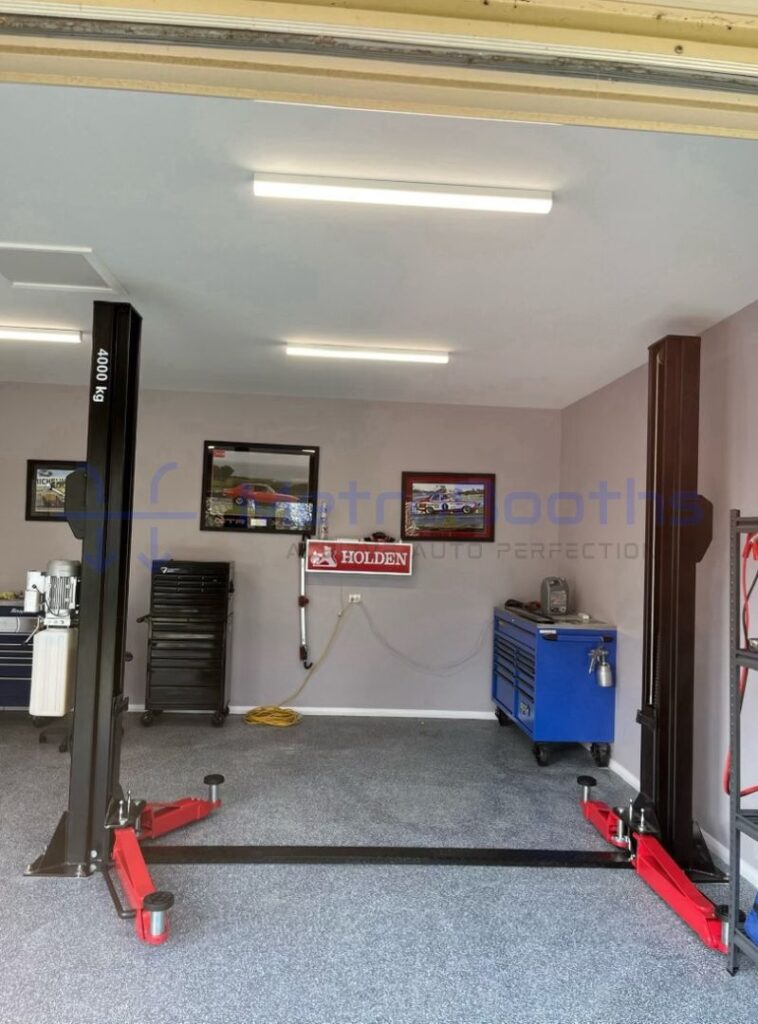

A two-post hoist is the industry standard for cars and light commercial vehicles and is frequently referenced in slab inquiries due to its distinct loading characteristics. If your floor or layout can accommodate a wider footprint, a four-post hoist distributes loads differently and is often preferred for storage or heavier vehicles. If space or slab depth is limited, consider a scissor lift or low-rise option.

Explore our extensive range of hoists, then consult with us regarding your workshop’s specifics. We provide supply and installation services throughout Australia and prefer to address any flooring concerns prior to any drilling.

Frequently Asked Questions About Hoist Installation

What Is the Minimum Concrete Thickness for a Two-Post Hoist?

There is no universal thickness for every two-post hoist, as requirements vary based on capacity and anchor type. The necessary thickness is detailed in your specific hoist’s installation manual, which outlines the minimum slab thickness and concrete strength for that model. For older or undocumented slabs, consulting a structural engineer or performing a core test will provide confirmation. Share your hoist details with us, and we will guide you to the correct specifications.

Can I Install a Car Hoist on an Existing Workshop Slab?

Yes, it is often possible, provided the existing slab meets the hoist manufacturer’s minimum thickness, strength, and edge-distance requirements. Many workshops successfully install hoists on existing floors. It is critical to ensure that the slab complies with the specifications rather than making assumptions. If the floor is undocumented, cracked, or uncertain, it should be evaluated before installation. A core sample and an engineer’s assessment can provide the necessary clarity.

What Concrete Strength Is Required for a Car Hoist?

Most car hoists specify a minimum concrete compressive strength in their installation manuals, with higher-capacity hoists potentially requiring more stringent specifications. Concrete strength is influenced not only by the mix used but also by how the slab was cured and reinforced. This is why a newly poured slab typically needs sufficient time to cure before anchors are installed. Always refer to the specifications in your hoist’s manual and confirm with your installer or engineer based on your specific site conditions.

Do I Need an Engineer to Assess My Floor Before Hoist Installation?

Not necessarily, but it may be required in certain circumstances. For a straightforward installation on a known, compliant slab, following the manufacturer’s guidelines with your installer is generally adequate. You should engage a structural engineer if the floor is old, undocumented, cracked, or marginal, or if you are installing a high-capacity hoist. An engineer can verify thickness and strength through a core test and advise whether the slab is suitable or needs remediation. When in doubt, seeking an assessment is a wise precaution. It is more cost-effective than addressing the consequences of an inadequate installation.

What If My Concrete Floor Is Not Thick Enough for a Hoist?

If your slab does not meet the hoist’s specifications, installation should not occur until the floor is brought up to the required standard. Anchoring into an insufficient slab poses significant risks, including the potential for anchor failure under load, which could result in a vehicle falling. Common solutions include pouring a thickened concrete pad in the hoist’s footprint or adding a new section of slab according to the manufacturer’s specifications. An engineer can recommend the best option for your situation.

Ensure Floor Safety Prior to Installation

The safety of a hoist is fundamentally connected to the integrity of the slab it is anchored to. Confirm that the floor meets all specifications, follow the manufacturer’s guidelines, and consult an engineer whenever uncertainty arises. By adhering to these steps, the installation process can be smooth and successful.
